Feature Product

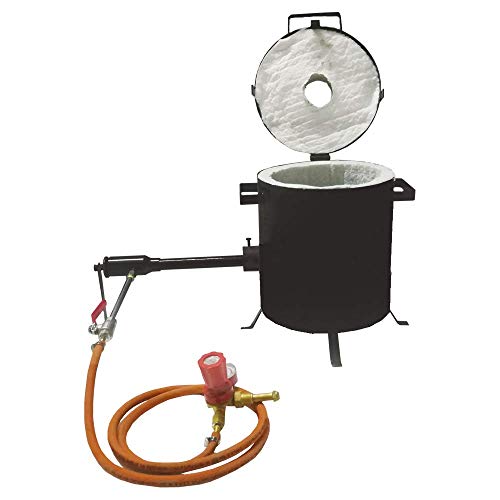

- Propane Melting Furnace and Accessories are made from Mild Steel and The Burner Nozzle is made from SS-304 material
- Furnace interior is fully lined with 1" thick, cover is lined with 2-3" of refractory ceramic fiber which can Resist temperature up to 2600°F (1425°C).
- Furnace floor is insulated with 2" ceramic fiber & refractory firebrick for smooth and plain surface which can hold the crucible without any inclination.
- High temperature, Fast melting propane furnace is designed to melt metals up to 2600°F
- Our regulator can be used For Other Country - CANADA, AUSTRALIA, NORWAY, SWEDEN, NEW ZEALAND, FINLAND, and ISRAEL. Crucible is not included in package.
Description
Propane Melting Furnace is designed to melt up to 22 Lbs.(10 Kg) of metals. It is ideal for melting gold, silver, copper, aluminium, brass, bronze, cast iron & other metals.
Pack contains Furnace Body, Burner Set, 6.5 ft. gas hose pipe, 2 hose clamps, Gas pressure regulator (Gas pressure 0-21 Psi) with manometer (Direct connect with USA propane tank), User manual & Assembly instruction. It is ready to use with a standard propane tank in the USA.
Specification
- Furnace Body Construction: MS metal Sheet
- Furnace Internal Dimension: 9 in.(W) x10.75 in.(H)
- Furnace Outer Dimension: 11.57 in.(W) x 14.5 in.(H)
- Furnace Floor: 1 in.(T) Refractory Fire Brick
- Crucible Maximum Size: 8.3 in.(H) & 6.3 in.(W)
A Shaped crucible (Salamander) Sizes which fit into the Furnace & Melting Capacity
- Pattern No-A0.5 (Size: 3.07in. x 2.68in. x 1.89in.) Capable to melt 2.26Kg Gold, 1.23Kg Silver, 1.04 Kg Copper, 0.97Kg Brass, 0.32 Kg Aluminium, 0.912Kg Iron
- Pattern No-A1 (Size: 3.82in. x 3.11in. x 2.17in.) Capable to melt 2.78Kg Gold, 1.51Kg Silver, 1.28Kg Copper, 1.2Kg Brass, 0.39Kg Aluminium, 1.13Kg Iron
- Pattern No-A1.5 (Size: 3.62in. x 3.54in. x 2.17in.) Capable to melt 3.47Kg Gold, 1.89Kg Silver, 1.6Kg Copper, 1.5Kg Brass, 0.49Kg Aluminium, 1.41Kg Iron
- Pattern No-A2 (Size: 4.29in. x 3.74in. x 2.4in.) Capable to melt 5.73Kg Gold, 3.12Kg Silver, 2.64Kg Copper, 2.5Kg Brass, 0.81kg Aluminium, 2.33Kg Iron
- Pattern No-A3 (Size: 5in. x 4.13in. x 2.76in.) Capable to melt 8.5Kg Gold, 4.63Kg Silver, 3.92Kg Copper, 3.7Kg Brass, 1.2Kg Aluminium, 3.46Kg Iron
- Pattern No-A4 (Size: 5.5in. x 4.5in. x 2.99in.) Capable to melt 13Kg Gold, 7Kg Silver, 6Kg Copper, 5.6Kg Brass, 1.84Kg Aluminium, 5.3Kg Iron
Refractory Ceramic Fiber may have red spot due to reaction of Coating by Rigidizer but it will not affect on the product application.
Crucible is not included in package.
